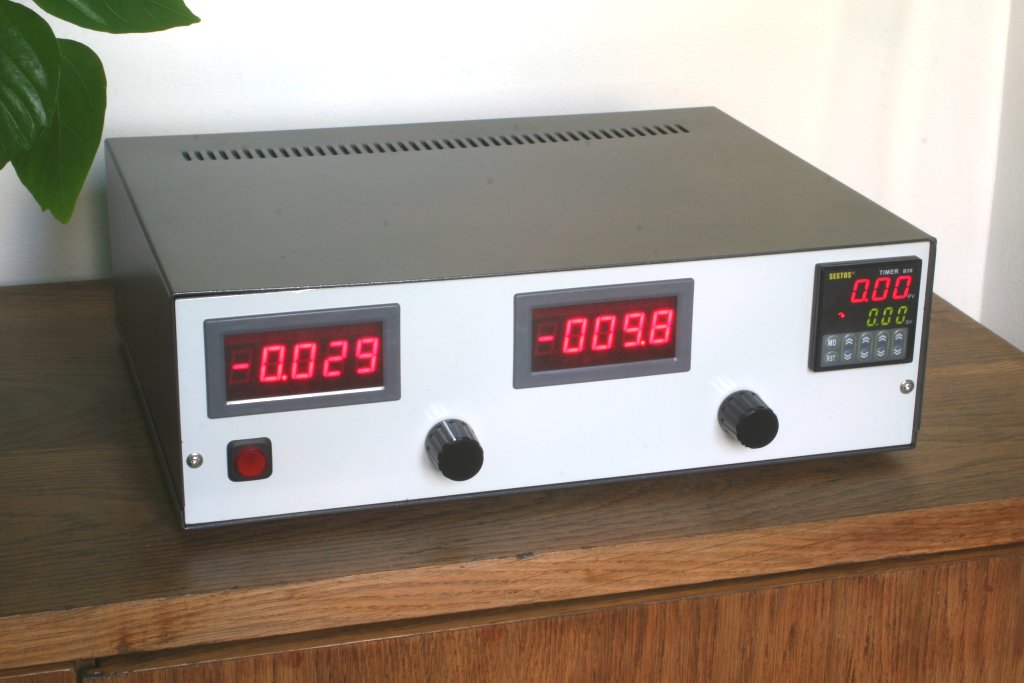

High Voltage laboratory variable power supply (JPL-6520A)
High voltage laboratory power supply offers output in range from 0 to 1510 V and output power
of 200 Watt. The output is adjustable with embedded controller JPL-6520B
with resolution better than ±0.1 Volt and ±0.50 mA.

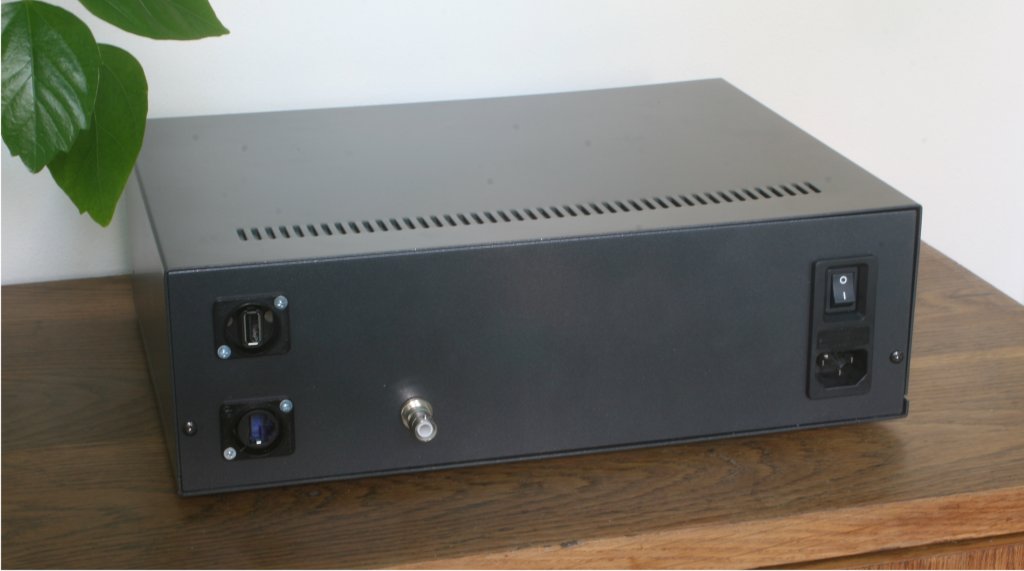

The laboratory power supply has an Ethernet and USB interface for remote control. Can be optionally equipped with an RS232C and/or CAN bus interface.
The PC remote control software in LabView runs on MS Windows (32 bit). With remote control software
it is possible to generate three high voltage signals: square, triangle and sawtooth with a frequency of up to 40 Hz.
The HV power supply can be internally switched either for positive or negative output. On request can be instaled
a timer control unit made by Omron.
