The HV Power Supply can be remotely controlled from a PC running LabView for MS Windows.

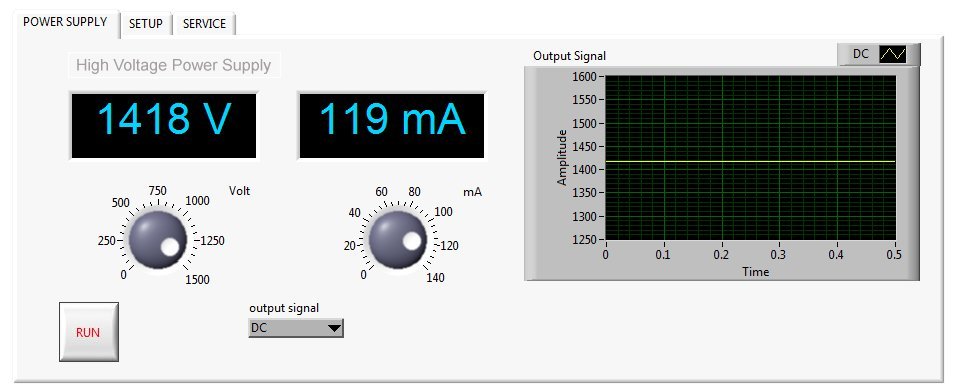

The LabView software enables remote control of HV Power Supply and read current data (Voltage and current) from the HV Power Supply to the PC. The HV Power Supply has installed simple function generator. Except DC output, also three output signals are possible: square, triangle and sawtooth. Output voltage can be adjusted at full range 0 ... 1500 Volt and current up to 140 mA for each output signal.

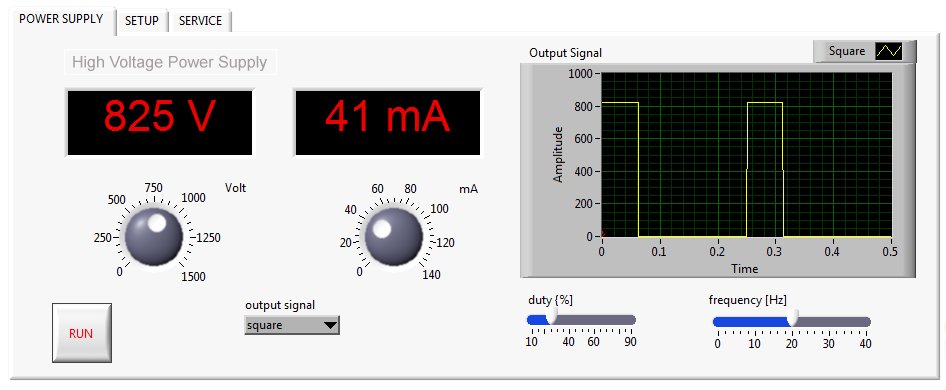

The rectangle signal can be changed with frequency (max 40 Hz) and duty (10 - 90%).

The triangle signal can be changed only at frequency (max 40 Hz).

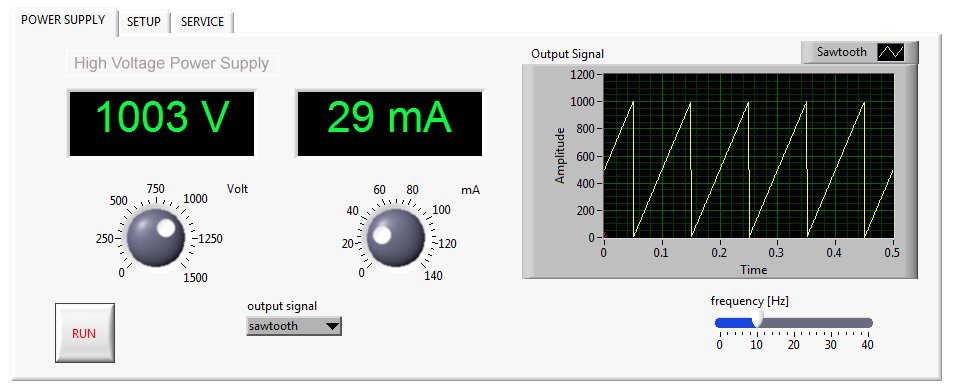

Also the sawtooth signal can be changed only at frequency (max 40 Hz). The colour of voltage and current indicators can be changed on SETUP tab.
