I have created full Documentation of the HP9845B Keyboard Encoder Board (Rev.A). The circuit diagrams were created in the CAE system EdWin. The purpose of the documentation was to obtain more information for the development of a new keyboard controller with serial and USB interfaces.

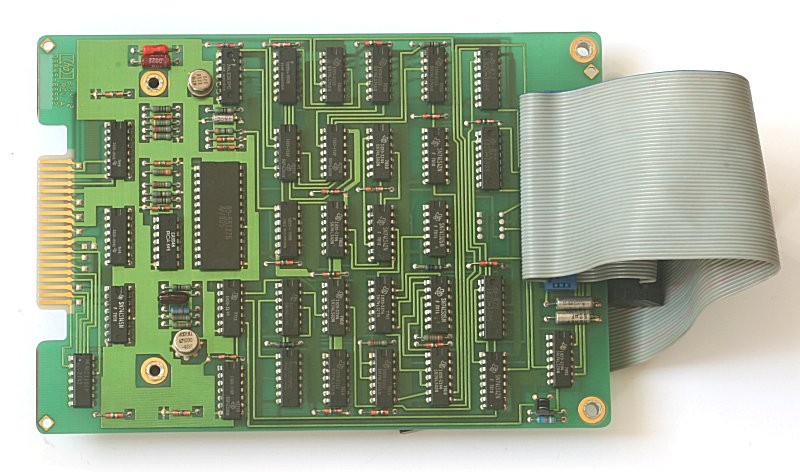

Fig. 1 - original board 09845-66532 Rev. A
