HP9845B - Language Processor board (09845-66515)

The original board made in Germany in 1978 is equipped with a hybrid processor and TTL circuits. Board size is 253 x 125 mm.

Language Processor board

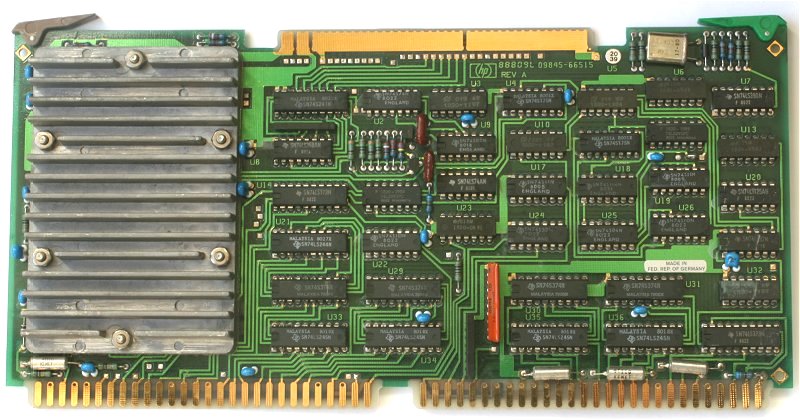

Fig. 1 - original board 09845-66515 Rev. A

In mid Feb 2026, I have decided to develop a new Language board, a replacement with Motorola CPU. This new board should also replace RAM board and RAM/ROM board.

projected new Language Processor board

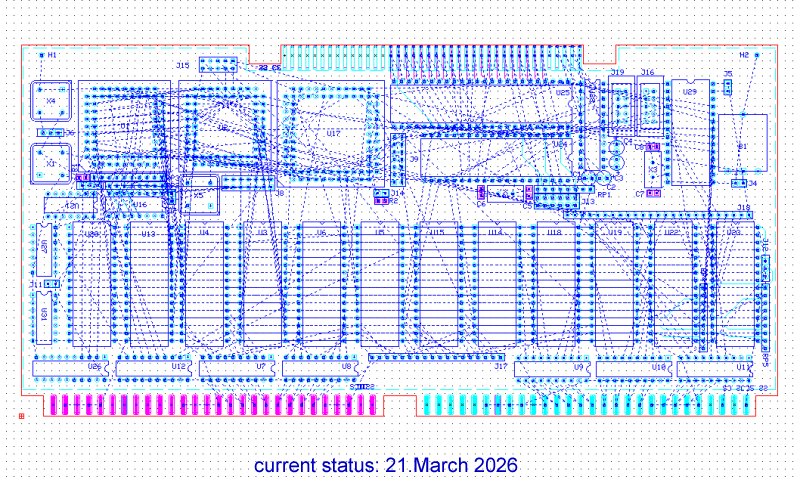

Fig. 2 - projected board

Currently is on the board:

  • CPU Motorola 68000
  • 4 Mbyte SRAM
  • 2 MByte ROM
  • Math Coprocessor 68882
  • PTI 68230
  • DUART 68681
  • RTC DP8570

    • Note: The above-mentioned components may be changed during the course of the project.
