I have created full documentation for the HP9825A Backplane Board (Rev.C). Schematic was created in CAE system EdWin. Available are schematics, Gerber and Excellon files.

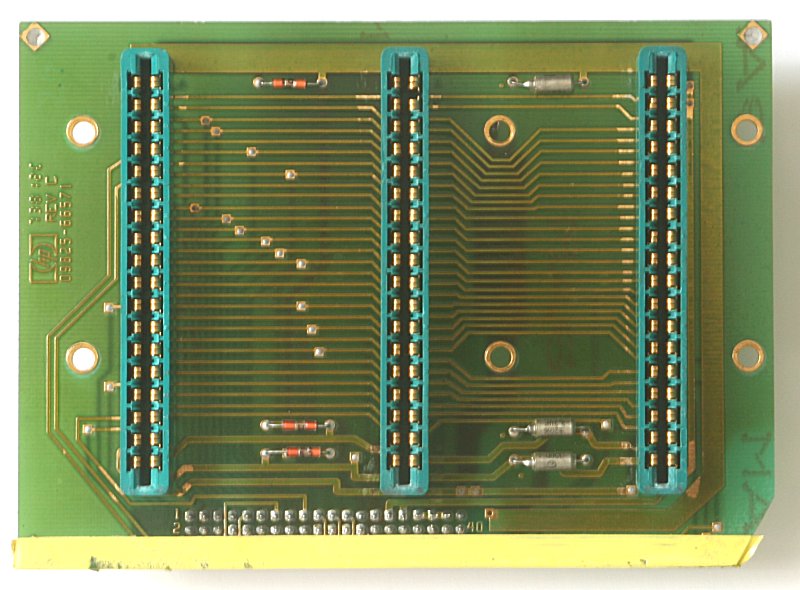

Fig. 1 - original board 9825a-69513 Rev. C (top view)

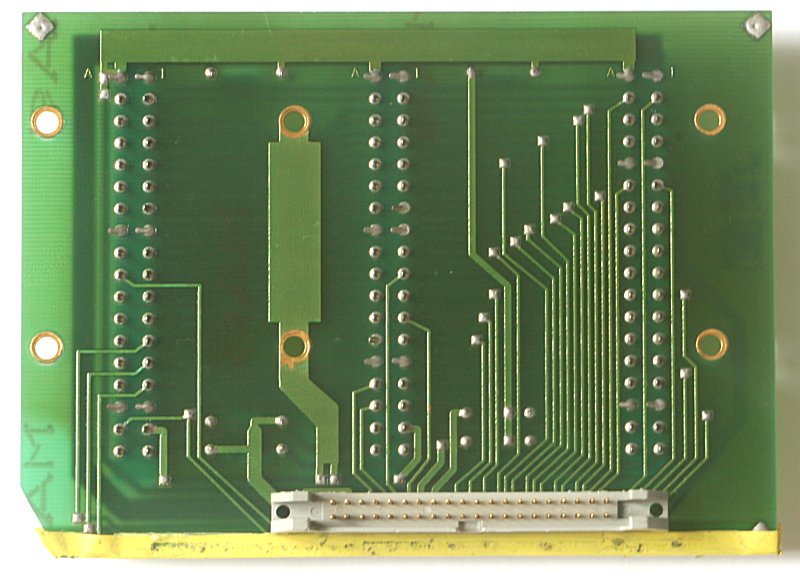

Fig. 2 - original board 9825a-69571 Rev. C (bottom view)
