CNC DC Power Supply (JPL-9001A)
The CNC power supply offers four independent DC regulators (+5V, +12V, and two 36V
or 55V) with a total power of 936 Watt.

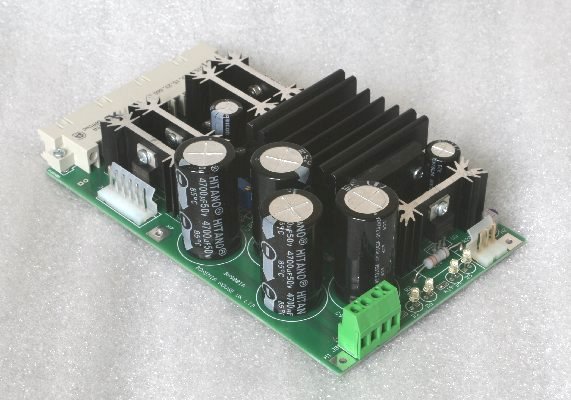

The CNC Power Supply has standard European format 160 x 100 mm with
input DIN 41612 / H15 connector.
The JPL-9001A can be powered either from non-regulated AC source, i.e. a
transformer or from non-regulated DC source, i.e. battery. The input power is
applied on DIN 41612 / H15 connector.
Outputs (3) and (4) can be connected:
serial to one source up to +100V (LV version) or up to +200V (HV version)
parallel to one source with current up to 16A
dual power supply ±50V/8A (LV version) or ±100V (HV version)
| Out No. |
LV version |
HV version |
adj. range |
| 1 |
+5V @ 4A |
4.5V ... 5.5V |
| 2 |
+12V @ 3A |
+9V ... +14V |
| 3 |
36V @ 8A |
55V @ 8A |
LV: 1.2V ... 50V
HV: 1.2V ... 100V |
| 4 |
36V @ 8A |
55V @ 8A |
LV: 1.2V ... 50V
HV: 1.2V ... 100V |
|
