HV power supply with variable output (JPL-6517A)

The BH6517A is a low cost variable HV power supply 0 ... 1000V with low power. Max. output current is 10 mA.

variable HV power supply (JPL-6517A)

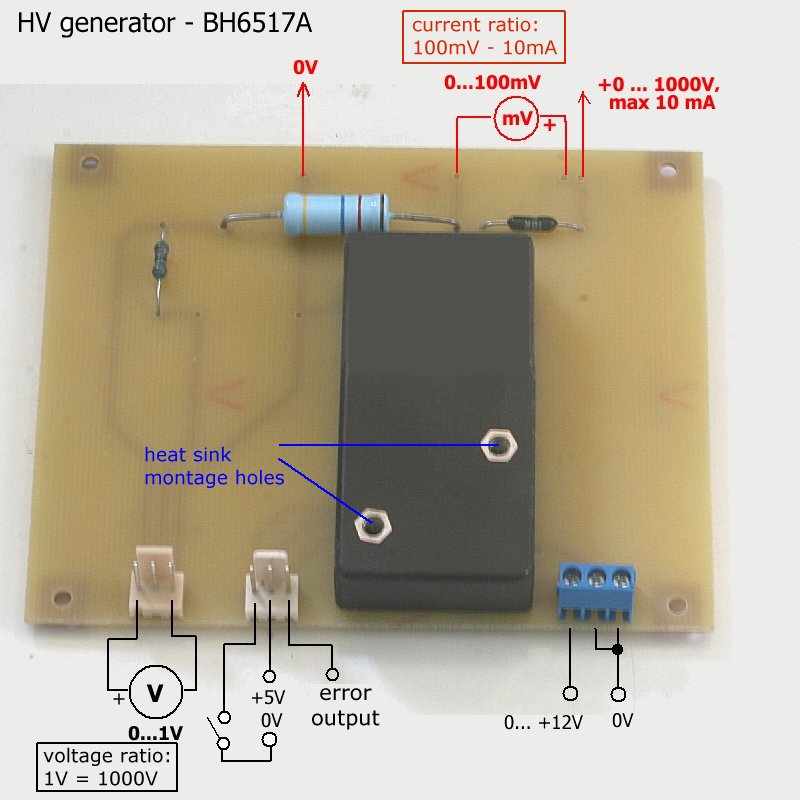

The prited Circuit Board has size 3.93" x 3.15" (100 x 80 mm). The variable HV power supply request two low voltage power supply:
  1. variable power supply 0 ... 12V
  2. +5V power for logic and control

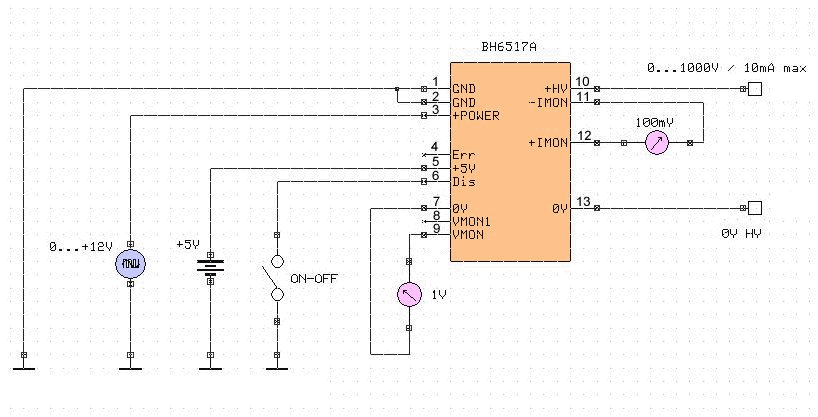

Circuit diagram:

JPL-6517A - variable HV power supply
