The BH6510A is a High Voltage Power Supply with variable regulated output and two low voltage independents outputs. It offers variable output from 0 Volt to max. 525 Volt with power 55 Watts. The output current can be andjusted to fixed value. Beside the variable regulated high voltage output, the BH6510A has two independent low voltage outputs: +5V and +12V, giving 500mA each. All outputs have over-current protection. The high voltage control circuits are isolated from high voltage line. Optionaly, the high voltage output can be remotely controled from microcomputer.

Features:

• HV output 0 - 525V , max. 55 Watt
• +5V and ±12V outputs, 500 mA each
• over current protection
• remote control (option with add-on-board)

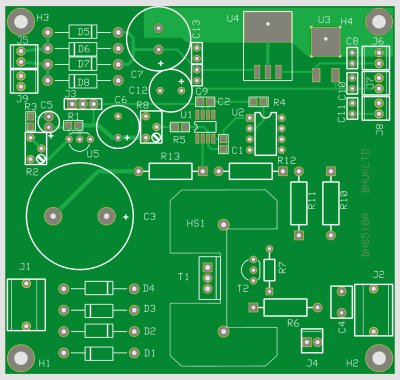

The Printed Circuit Board has size 3.6" x 3.5" (93 x 88 mm)
