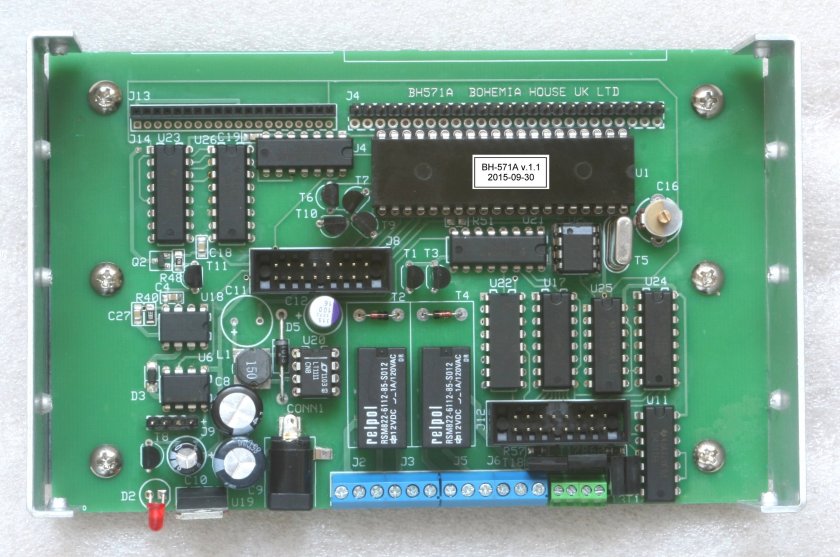

Time signals and time marks generator (JPL-571A)
The time siganals and mark generator (code: JPL-571A) has been developed in 2010. It is based on CPLD and CMOS4000 circuits. Generated signals: 1/4 sec, 1/2 sec, 1 sec, 2 sec, 4 sec, 1 min, 2 min, 4 min, 16 min.
The generator has very little power consumption and can be powered from non-regulated power supply or battery. Size: 140 x 90 mm.

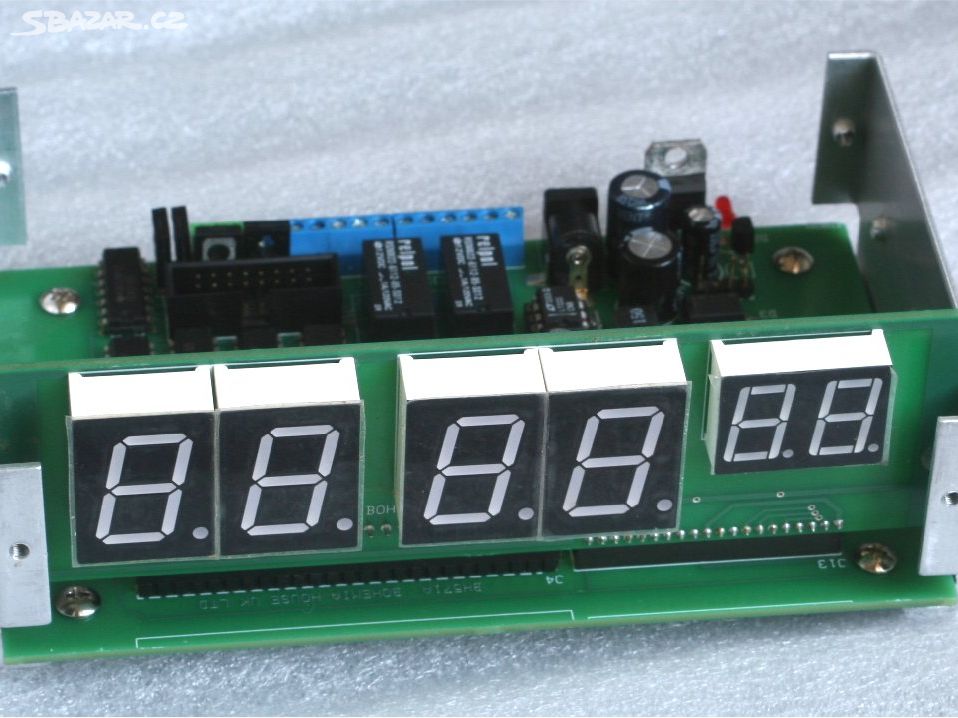

The instrument has internal CPLD digital clock with a timer. The clock has 12/24 hrs format and 4/6 digits with output for warious displays (LED, LCD, plasma ...). On the board is also a H-bridge with a power driver outputs up to 60V.
