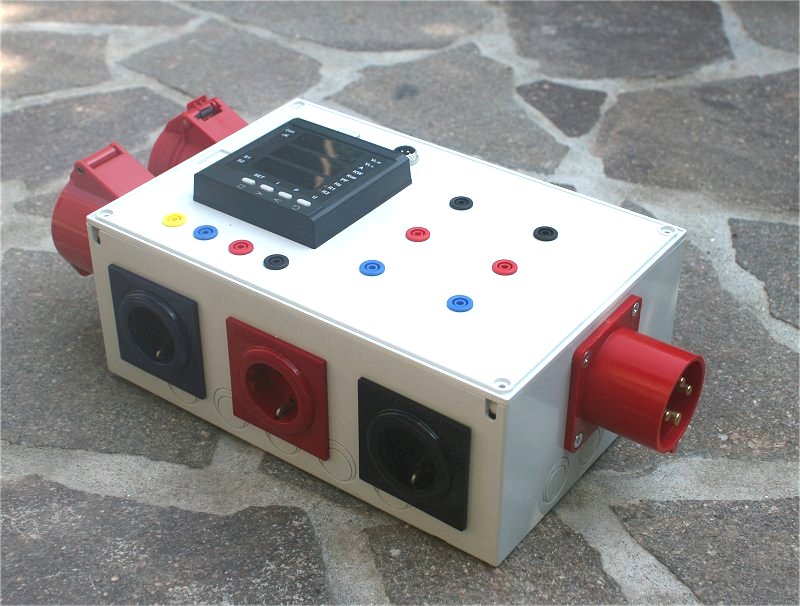

The 3-phase Power Analyzer TestBox, BreakoutBox allows you to provide measurements on a 1-phase or 3-phase networks. Installed 3-phase digital meter measures voltage, current, real and reactive power, consumption. The Power Analyzer has RS-485 interface with a MODBUS-RTU protocol.

The Power Analyzer has internal voltage and current sensors, however optionally can be connected external dataloggers and/or external current clamps or ammeters and external voltmeters.

Current Range	32 A
Voltage Range	630 V
Frequency Range	25 to 500 Hz
Interface	RS-485, MODBUS-RTU S0 pulse output
Size:	430 x 205 x 130 mm
